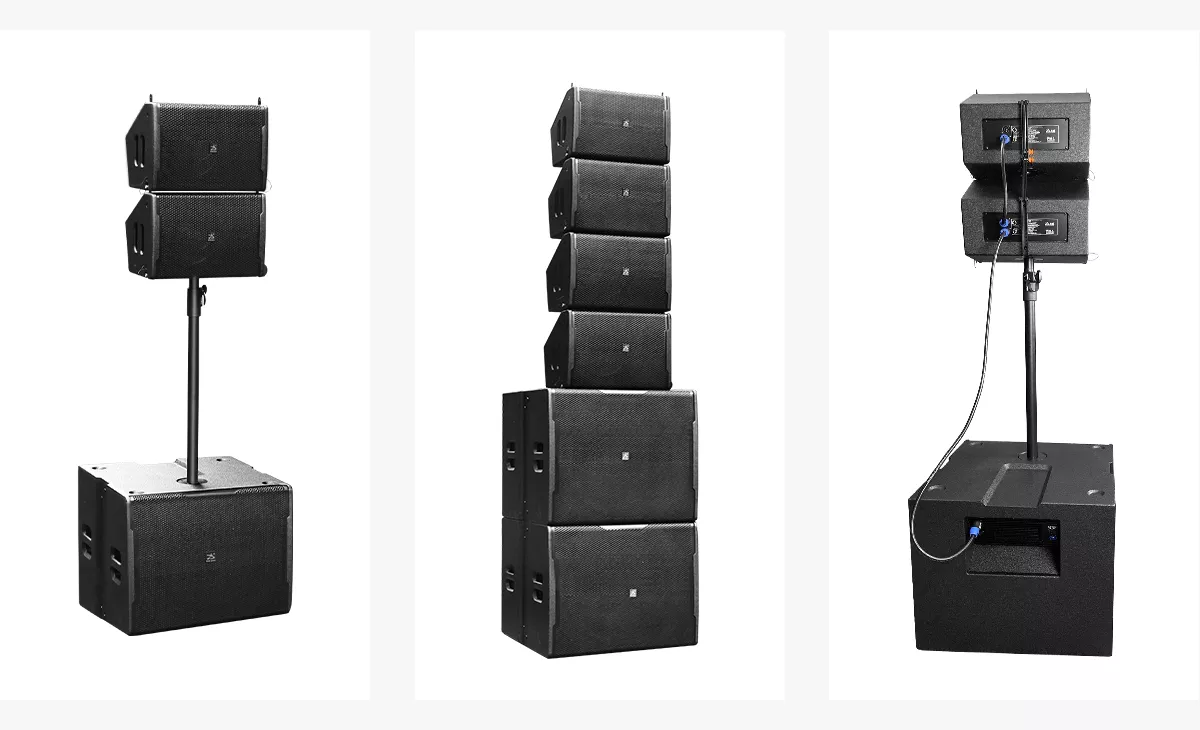

Single 10″ Line Array System

Tính năng

  • · Short distance active line array speaker. Tiny size but high efficiency,easy installation.
  • · Each T810 speaker has one high efficiency 10inch LF-Driver and two 1inch HF-Drivers.Total power is 1000W.
  • · Input voltage: 90-260V Frequency: 50/60Hz.
  • · 100 deg. Horizontal coverage,   wider sound field and audience area.
  • · 15 deg. Vertical waveguide reduce the unnecessary sound reflex.
Supportable, Hangable, Stackable/Waterproof polyurea paint

Thông số kỹ thuật

Model   TL810        TL818
Driver (inch)LF:1×10″

HF:2×1″

1×18″
DC-Impedance9.6 Ohm9.6 Ohm
Freq.response (HZ/-6db)70-22k25-200
Power consumption (W)250600
Peak Voltage (Vp)100200
Peak Current (Ap)1020
Peak power (W)10002400
Sensitivity (db/m.w)98100
Maximum SPL (db)127-139133
Coverage (H°xV°)110×15

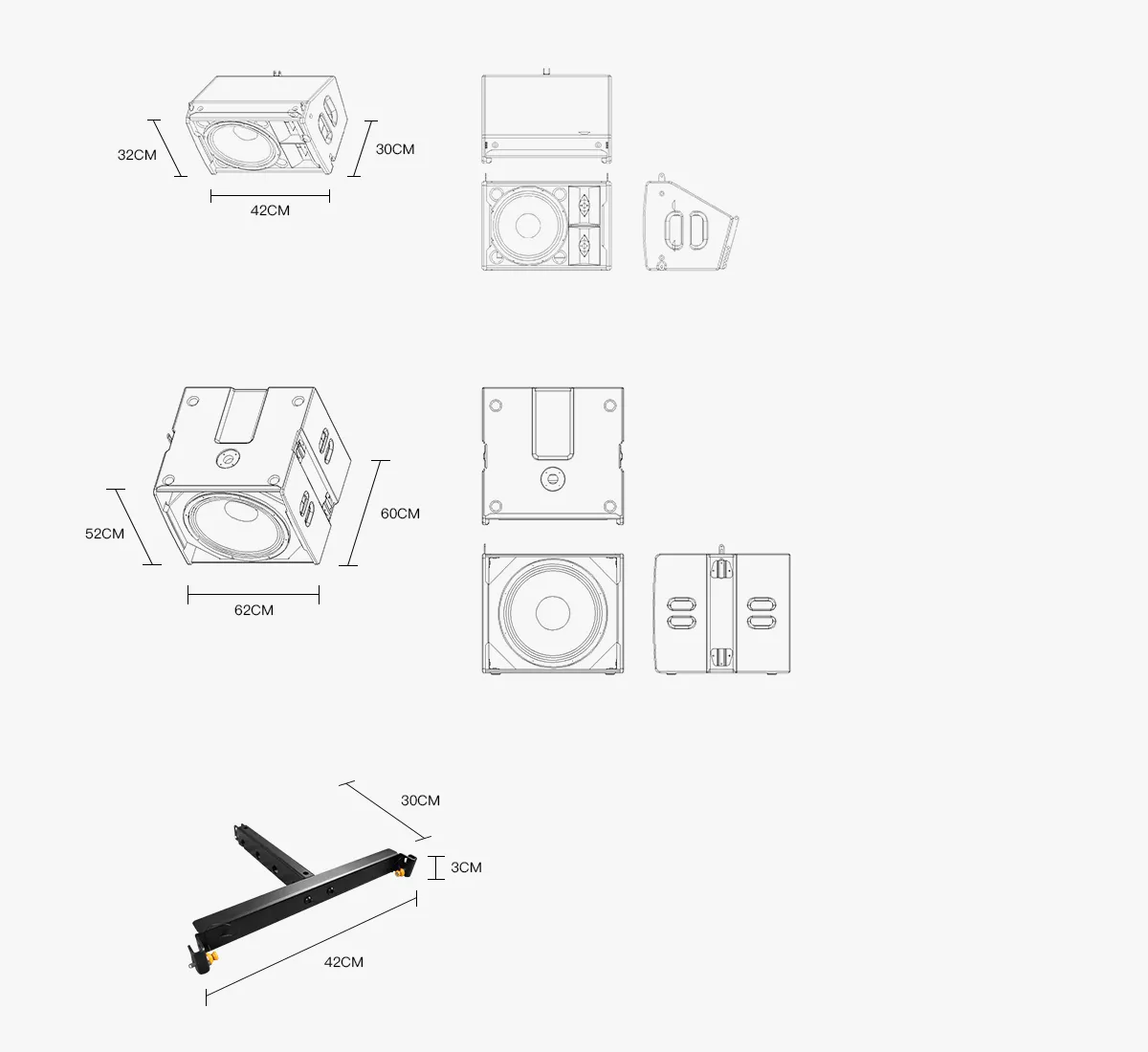

Size (cm)42x30x3262x52x60
N.W.(kg)12/10(Nd)35/32(Nd)

Size
