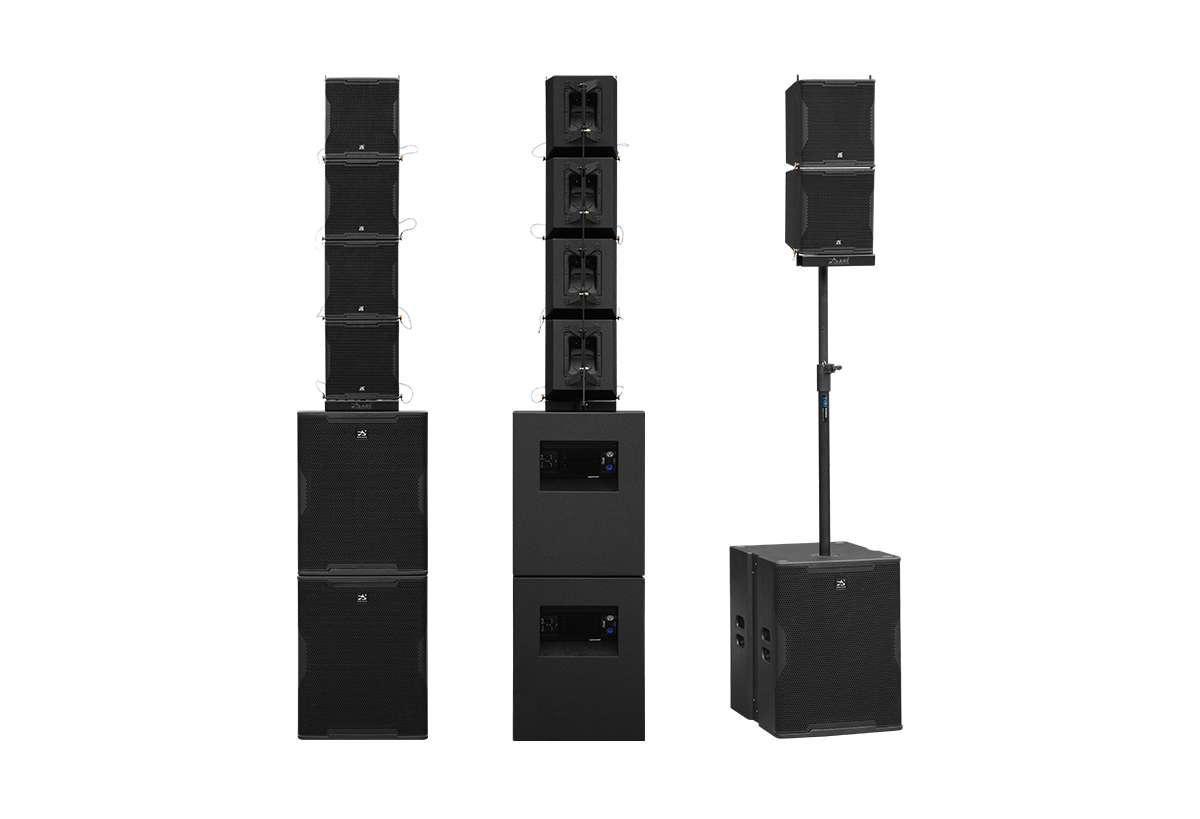

Single 10″ Line Array System

Tính năng

  • · Each TC110 speaker has one high efficiency coaxial 10inch LF-Driver and one 1.8 inch HF-Drivers. Total power is 1000W.
  • · Input voltage: 90-260V Frequency: 50/60Hz.
  • · 100 deg. Horizontal coverage,   wider sound field and audience area.
  • · 15 deg. Vertical waveguide reduce the unnecessary sound reflex.
Supportable, Hangable, Stackable/Waterproof polyurea paint

Thông số kỹ thuật

Model   TC110    TS118
Driver (inch)LF:1×10″

HF:1×1.8″

1×18″
DC-Impedance9.6 Ohm9.6 Ohm
Freq.response (HZ/-6db)70-22k32-400
Power consumption (W)250600
Peak Voltage100200
Peak Current1020
Peak power (W)10002400
Sensitivity (db/m.w)98100
Maximum SPL (db)127-139133
Coverage (H°xV°)90×15
Size (cm)28x30x3248x60x62
N.W.(kg)1030

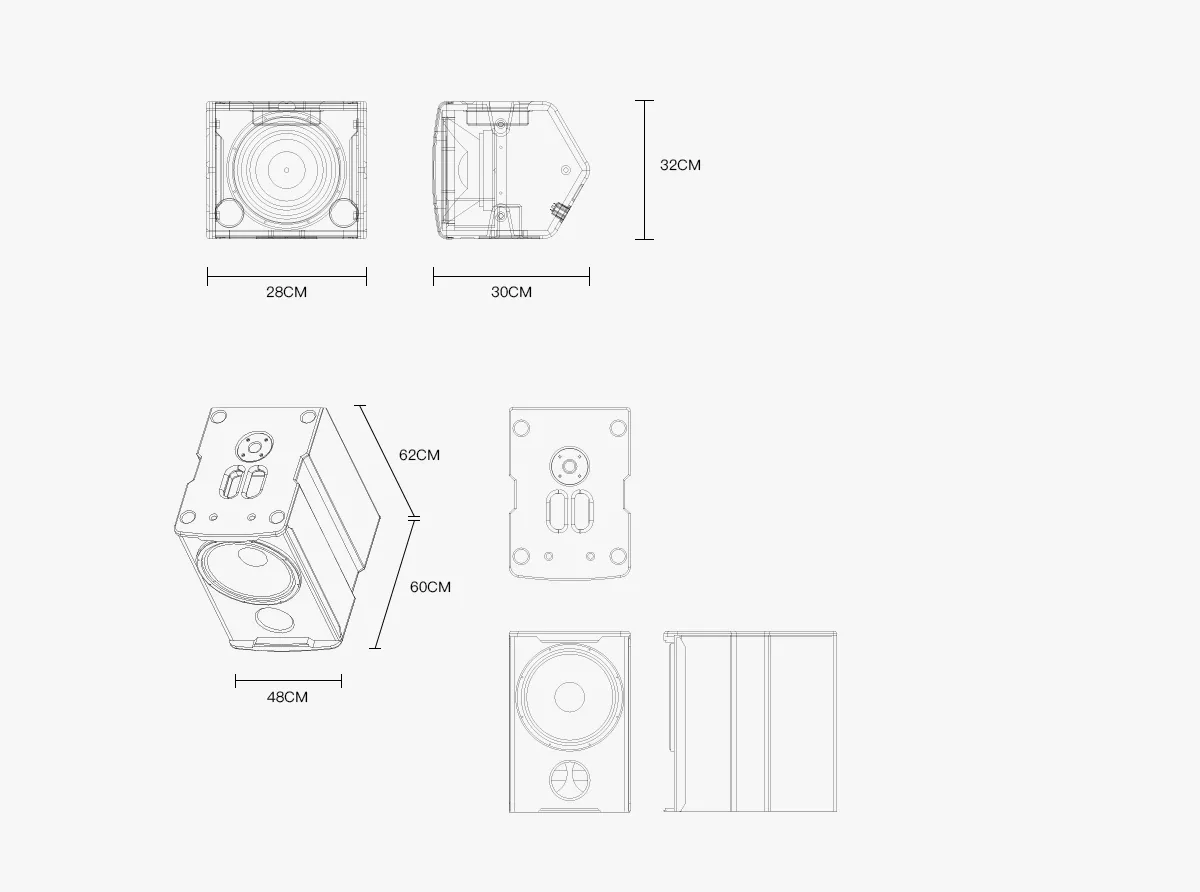

Size
