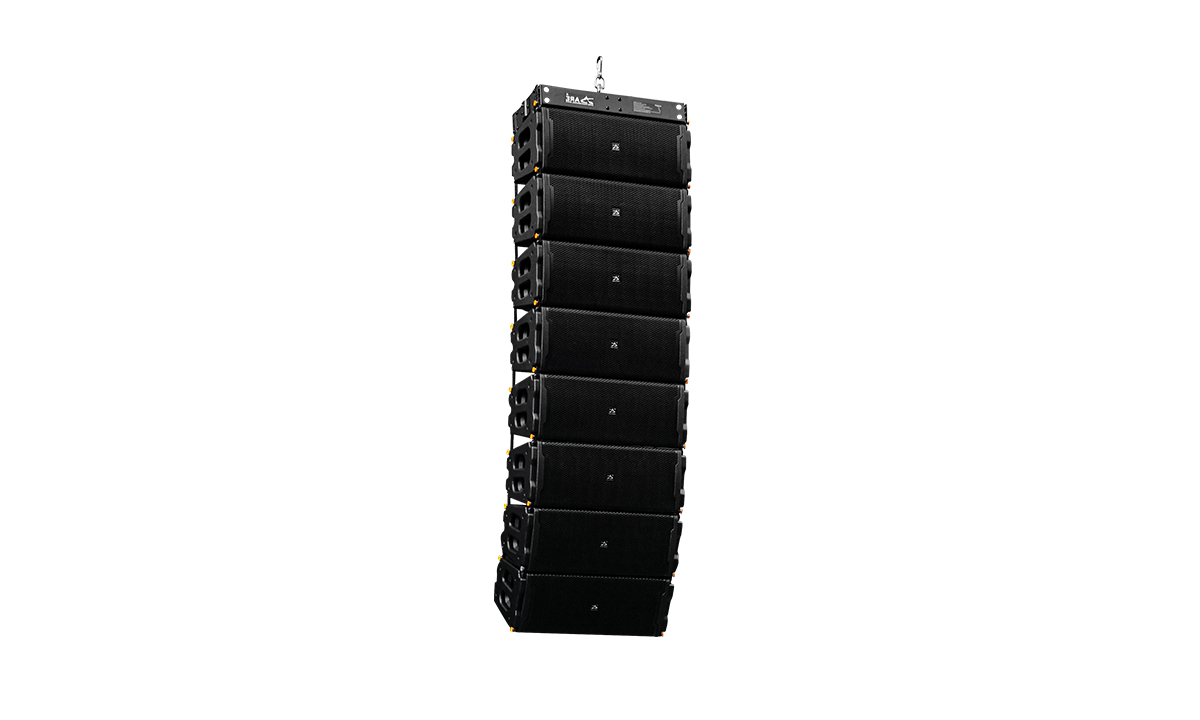

Dual 15″Line Array System

Tính năng

  • Each speaker has its own independent DSP power amplifier module,and the DSP parameters are accurately adjusted to ensure that each speaker is in the best       state.
  • Mid-distance active line array speaker, tiny size but high efficiency,easy installation.
  • 2 sets L824 peakers (4 speakers in an array) SPL is 126dB at 125m distance.
  • Each L824 speaker has two high efficiency 12inch LF-Drivers and two 1.8inch HF-Drivers. Total power is 2800W.
  • Input voltage: 90-260V Frequency: 50/60Hz.
  • 100 deg. Horizontal coverage,   wider sound field and audience area
  • 15 deg. Vertical waveguide reduce the unnecessary sound reflex.
Hangable/stackable/Waterproof polyurea paint

Thông số kỹ thuật

Model   L830         S842
Driver (inch)LF:2×15″

HF:3×1.8″

2×21″
DC-Impedance9.6 Ohm3.2 Ohm
Freq.response (HZ/-6db)50-20k25-200
Power consumption (W)8001600
Peak Voltage (Vp)200200
Peak Current (Ap)2060
Peak power (W)32006400
Sensitivity (db/m.w)103104
Maximum SPL (db)140-152142
Coverage (H°xV°)110×15
Size (cm)96x42x47120x60x80
N.W.(kg)40/32(Nd)75/65(Nd)

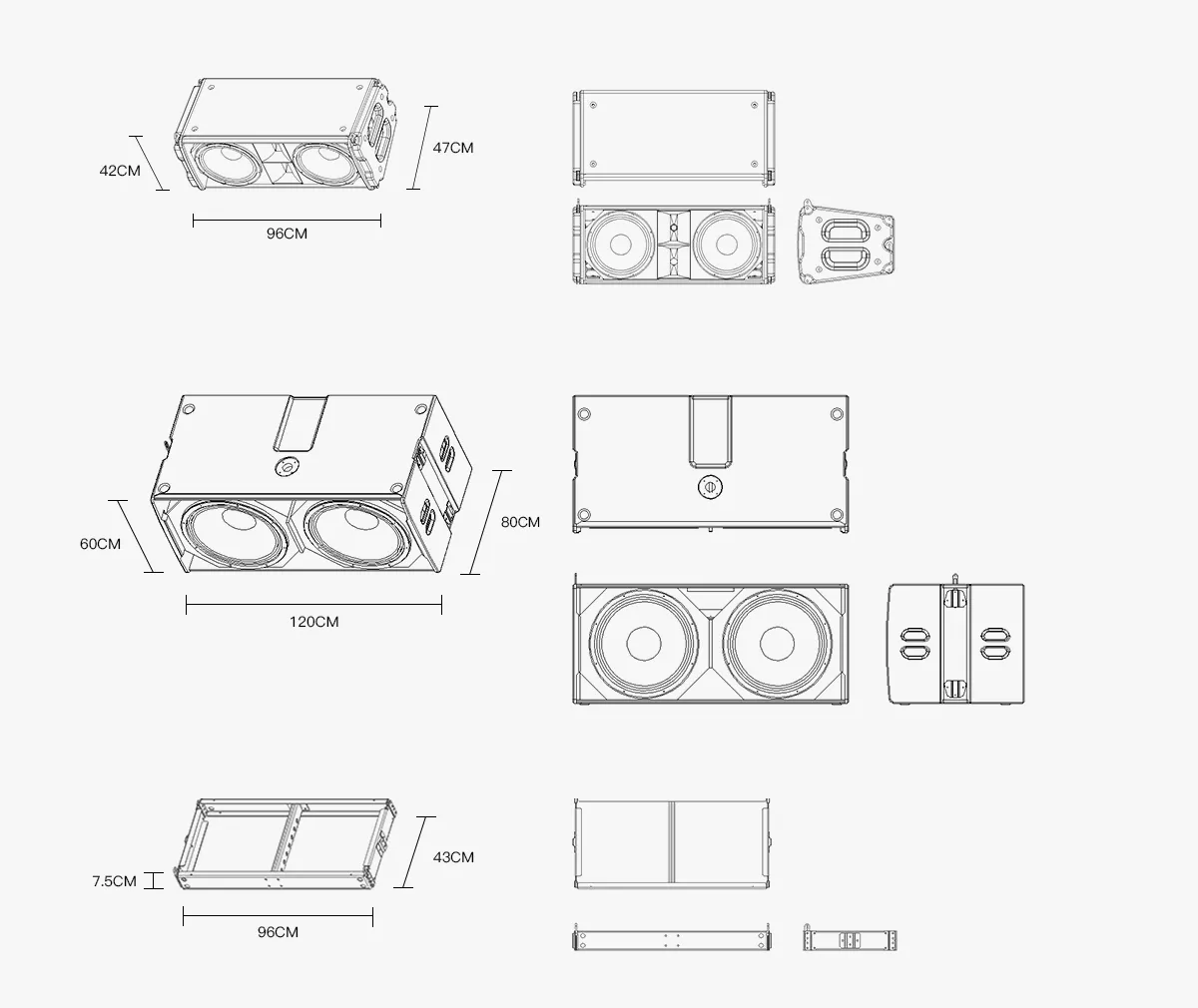

Size
