· Each speaker has its own independent DSP power amplifier module,and the DSP parameters are accurately adjusted to ensure that each speaker is in the best state.

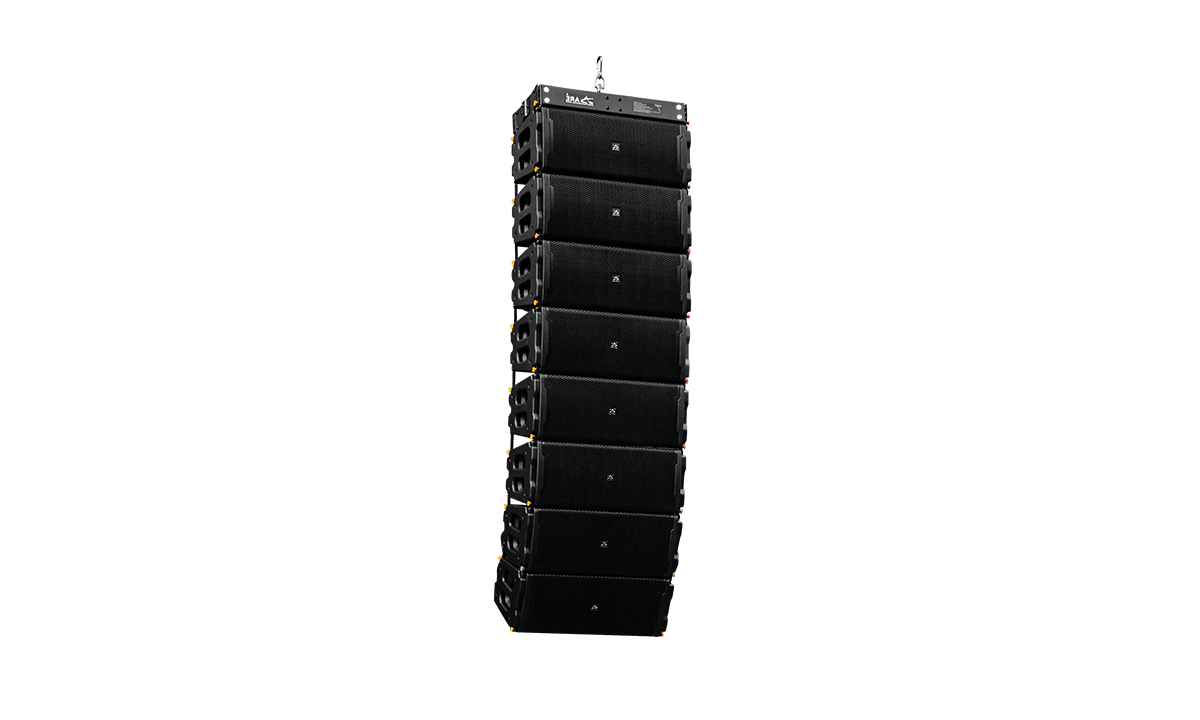

· Mid-distance active line array speaker, tiny size but high efficiency,easy installation.
· 2 sets L824 peakers (4 speakers in an array) SPL is 126dB at 125m distance.
· Each L824 speaker has two high efficiency 12inch LF-Drivers and two 1.8inch HF-Drivers. Total power is 2800W.
· Input voltage: 90-260V Frequency: 50/60Hz.
· 100 deg. Horizontal coverage, wider sound field and audience area

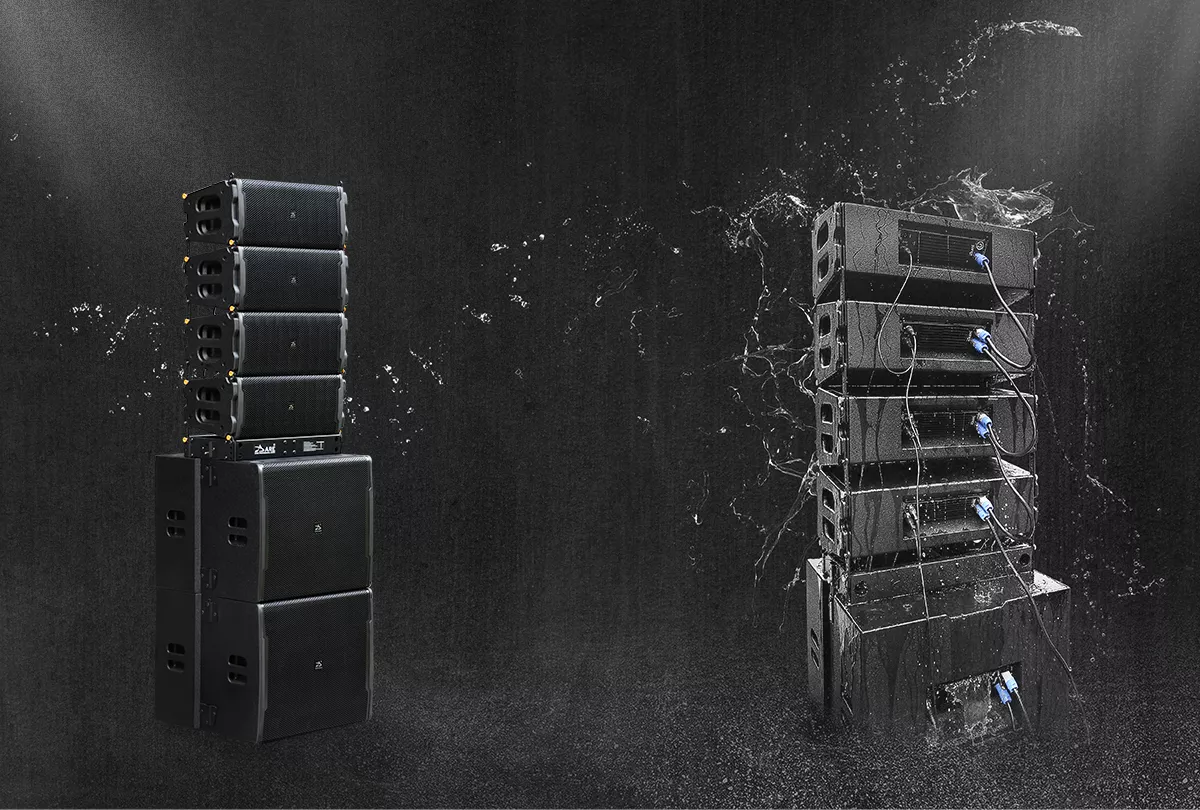

Hangable/stackable/Waterproof polyurea paint| Model | L824 | S824 |
| Driver (inch) | Driver (inch) | 1×24″ |
| DC-Impedance | 12.8 Ohm | 4.8 Ohm |
| Freq.response (HZ/-6db) | 60-20k | 25-200 |
| Power consumption (W） | 700 | 1000 |
| Peak Voltage (Vp） | 200 | 200 |
| Peak Current (Ap） | 15 | 40 |
| Peak power (W) | 2800 | 4000 |
| Sensitivity (db/m.w) | 102 | 102 |
| Maximum SPL (db) | 137-149 | 137 |
| Coverage (H°xV°） | 110×15 | — |

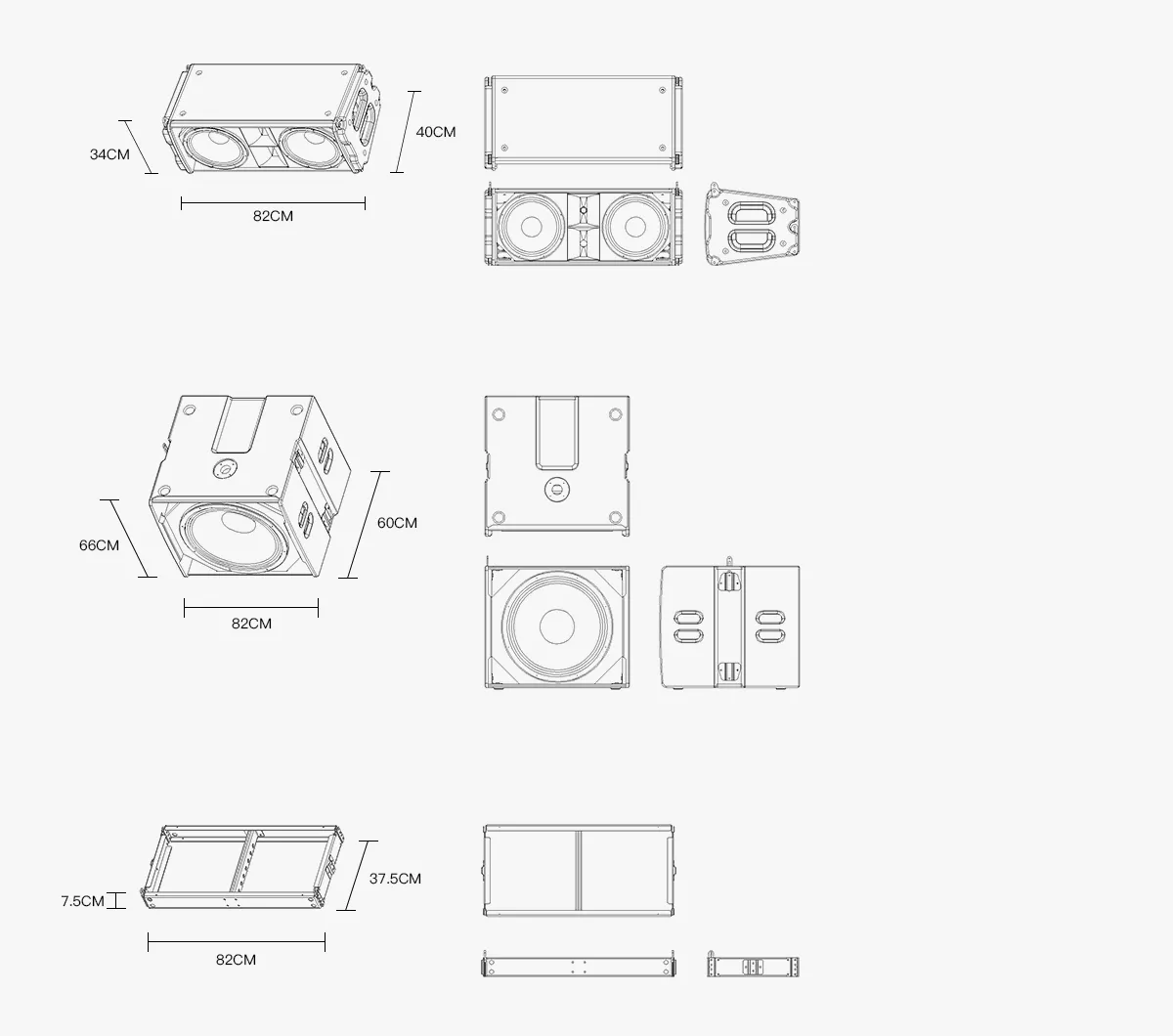

| Size (cm) | 82x34x40 | 82x66x60 |
| N.W.(kg) | 32/25(Nd) | 55/50(Nd) |
